Control Panel

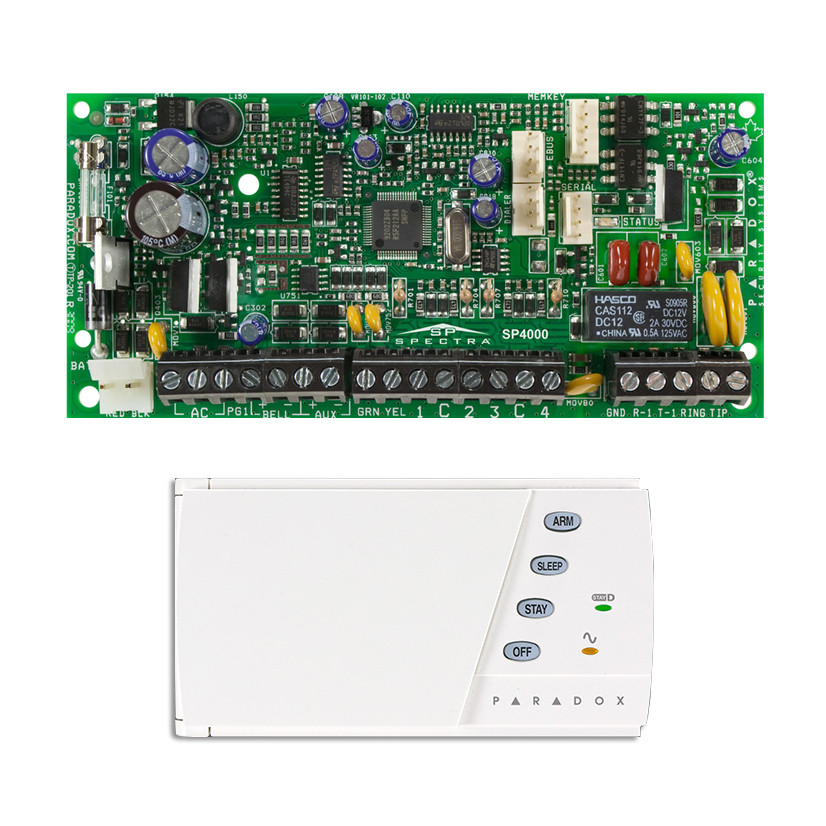

4-zone control expandable to 32-zone c/w K636 + BBT

• SP4000 Features
• Supports StayD mode
• 4-wire expansion bus
• Expandable to 32 zones
• Expandable to 16 PGMs
• 2 Partitions
• 32 User Codes
• Supports PCS Series
• Supports IP100 Internet Module
• Supports VDMP3 Plug-in voice dialer
• Supports REM3 hand-held remote keypad - require RTX3 V1.31 or higher (SP4000 - One way only)
• Supports iParadox app
• In-field firmware upgradeable via a 307USB - WinLoad for SP5500/SP6000/SP7000 - InField Firmware Upgrade Software for SP4000/SP65
• Menu-driven programming for the Installer, Master and Maintenance codes
• Multiple phone numbers: 3 for monitoring station, 5 for personal dialing and 1 for pager reporting (SP65: via PCS200 only - GSM reporting)
• Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry - US Patents 5751803, RE39406 (N/A with the SP65)
• Automatic Daylight Savings Time feature
• Push button software reset (reset to default values and restart)
• Direct connect at 9.6k baud - WinLoad for SP5500/SP6000/SP7000 - Babyware for SP4000/SP65
• 256 events buffered
• Fits in 20cm x 25.5cm x 7.6cm (8in x 10in x 3in) and 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal boxes
